English

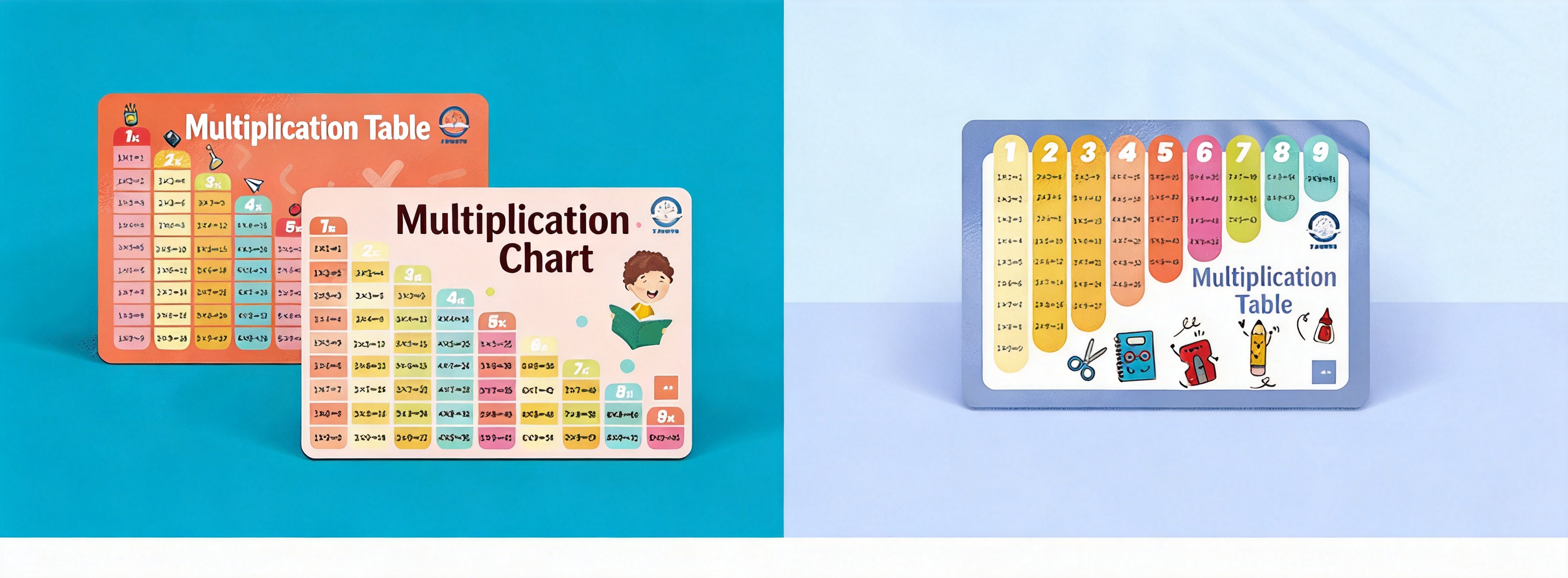

Product Effect
PRODUCT EFFECT
Product Specifications
PRODUCT SPECIFICATIONS
100×70MM
200×140MM
210×140MM

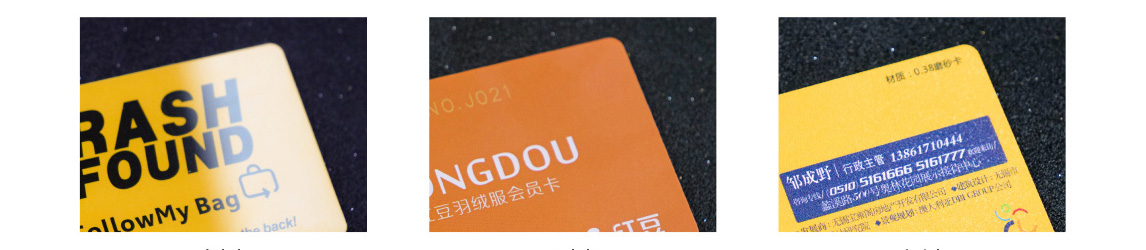

Product Material
PRODUCT MATERIAL
Glossy Card
Smooth surface, bright and rich colors, affordable, and widely used.
【Thickness】0.38mm 0.76mm 1mm
Matte Card
Smooth and delicate, non-reflective, scratch-resistant.
【Thickness】0.38mm 0.76mm 1mm
Frosted Card
Frosted texture, with a grainy feel when touched, scratch-resistant.
【Thickness】0.38mm 0.76mm 1mm
Precautions
PRECAUTIONS
- 01. Size Design:
Fixed three sizes: 100×70MM/200×140MM/210×140MM. The bleed should be 3mm on each side, and the effective content after bleed should be at least 6mm away from the edge. - 02. Color Grasp:
The production file needs to be in CMYK color mode, and spot color printing is not supported. Color adjustment design can be referred to the color spectrum. The default is combination printing, and there will be a color difference of about 10%-15%. For black background, it is recommended to design as C30 MO YO K100 or single black. For gray background, design single gray. The QR code is recommended to be 1.8CM or above, single black. - 03. Common Problems:
It is recommended to send a converted vector file (CDR/AI) or.JPG (resolution greater than 500). Vector files are clearer than JPG files when printed. Vector text is recommended to be above 5 points, and JPG format is recommended to be above 6 points. Black text must be designed as single black. There is usually a 2MM error in normal die-cutting or engraving. If the file has a border around it, please remind the customer of the deviation problem. - 04. Self-service Ordering:
Please be sure to determine the quantity, material, and post-processing requirements before uploading. If the front and back of the file are the same, please submit the back side together. If the back sides of multiple files are the same, only one back side needs to be placed, and the back side file is named as same back.
Product Quality Guarantee and Disclaimer
Since its establishment, our company has maintained a rigorous and responsible attitude in providing each client with comprehensive services from consultation to after-sales support. To facilitate your understanding of our company and uphold our commitment to product quality responsibility, we hereby publish the printed product quality guarantee and disclaimer as follows:
After-Sales Service Timeliness
Please inspect the goods promptly upon receipt for any quality issues and submit an after-sales request within one month. After-sales requests submitted beyond one month will not be processed. Thank you for your understanding!
Color Deviation Issues
- Printing uses CMYK four-color offset printing. Please do not use RGB mode or spot colors when filling colors. Do not require printing colors based on screen or printed proof colors. When designing, please refer to color chart values for color fills. Otherwise, after-sales service will not be provided for resulting color deviations.
- We strictly adhere to the CMYK color values in the file for printing. However, for the same printed product with different order numbers or produced in different batches, a color deviation of around 10% is normal due to variations in temperature, humidity, and manual operations. Particularly for dark blue, dark green, dark purple, maroon, brown, coffee, and gray — these are considered risky colors. A color deviation of around 5% can be visually noticeable, especially for large solid areas and flat tints. During printing, issues like ink streaks, uneven printing, or color variations within a batch may occur and are unavoidable. After-sales service will not be provided for issues within this range.
Cutting Issues
There is a cutting tolerance of 2 millimeters. Design essential content at least 3 millimeters away from the finished edge (excluding bleed). Especially for designs with colored borders on all sides, uneven cutting may occur and be visually noticeable. Please inform the client in advance. After-sales service will not be provided for issues within this range.
Four-Color Black Text and QR Code Issues
Please design black text and QR codes as solid black (K100, CMY 0). For large-area black, use the color value (K100, C30, M0, Y0). Do not design with four-color black, as it may cause ink smearing and misregistration issues. After-sales service will not be provided if these instructions are not followed.
Filename and Remarks Issues
Order production is based on the selected printing specifications. Filenames and remark information are not used as references for production. Please ensure the correct paper and processes are selected when placing the order. Otherwise, after-sales service will not be provided for resulting losses.
Minor Scratch Issues
PVC cards require a lamination process to achieve glossy, matte, or satin finishes. The post-production involves multiple steps, and friction during transportation can cause minor scratches. Glossy materials do not conceal imperfections; minor scratches on glossy cards are unavoidable, and after-sales service will not be provided. If the client has high requirements, we recommend using matte or satin materials.
Missing Codes and Number Gaps
PVC card production involves many processes. Numbering has a 0.5% wastage rate, and machine numbering may occasionally skip numbers. Therefore, we cannot guarantee that numbers will be completely sequential and continuous. For missing codes, after-sales service will not be provided.
Material Variation Issues
PVC is a plastic product. Material thickness may vary by about 0.02mm between different batches, and color may slightly differ. These are normal phenomena; please inform the client in advance. When thickness exceeds 0.5mm, cards require lamination to be finished. Influenced by factors such as temperature, humidity, surface material, and core material thickness tolerance, cards may have slight unevenness. This is unavoidable, and after-sales service will not be provided. Due to the special properties of the material, the finished product is not guaranteed to be suitable for secondary overprinting. After-sales service will not be provided for such issues.
Regarding Sunlight Resistance
PVC specialty cards are printed using CMYK four-color offset printing, resulting in a relatively thin ink layer. Ultraviolet (UV) rays or rainwater can damage ink stability. Fading will occur faster under strong UV light or frequent rain. If the client requires color sunfastness, we recommend selecting sunlight-resistant ink when placing the order. The sunlight-resistant ink we use has a grade 6 sunfastness rating, and its effectiveness generally lasts 1-3 months.
Regarding Environmental Testing
The following materials require core material lamination and currently do not support environmental testing: 0.32mm matte standard material, 0.76mm glossy new material, 0.76mm matte new material, 0.76mm satin new material, 1mm glossy new material, 1mm matte new material, 1mm satin new material. If the client has high requirements and needs to meet environmental testing standards, please consult our staff separately for calculation and arrangement.
Regarding Ink Smearing Issues
PVC production involves many processes, and there is a certain probability of slight surface dust or ink smearing, especially with glossy materials. For high-demand dark or solid-color cards, achieving zero defects is currently not possible. We recommend informing your client of this situation in advance and合理安排 material and order planning accordingly.
PVC Category - PVC Learning Rhymes Mat Product Ordering Instructions
Dear Customer:
The PVC learning rhymes mat is automatically processed. To improve efficiency for both of us, please abide by the following rules!
I. Order Registration Standards and Design Precautions
- Please register the finished product size when placing an order. The bleed is 3mm on each side, and the effective content after bleed is at least 6mm away from the edge. Note: The picture on the edge after bleed also needs to be stretched to the edge.

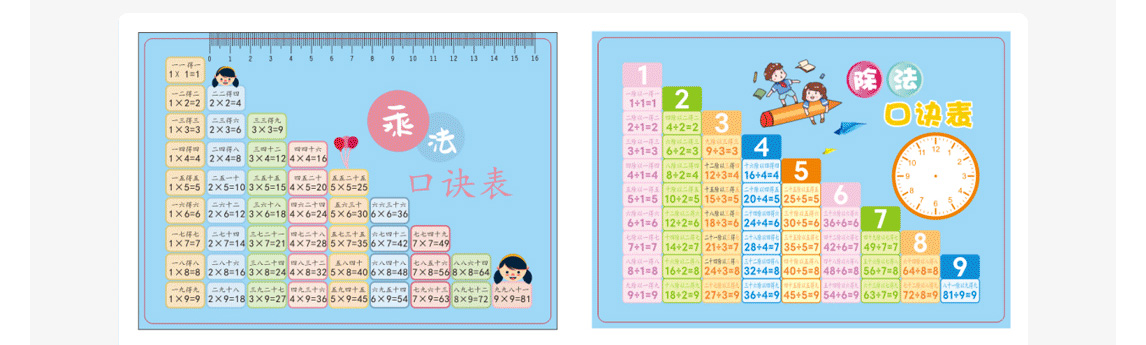

- For PVC multiplication rhyme tables/division tables and other learning mats, the recommended size is 200×140 millimeters, and the popular material is 0.76 glossy new material.
- The color mode must be CMYK mode, and the text must be converted to curves, and placed left and right on the front and back.
- Avoid designing with colored edges. If there are colored edges, the finished product will have uneven cutting, which is visually obvious. Please inform the customer in advance.
II. Design Friendly Reminder
- Black and Gray
- a, Black text:
For AI/PDF/CDR files: The color value of black text is C0 M0 Y0 K100,
For JPG files: The color value of black text is C0 M0 Y0 K100, the overlay mode without stroke color, and the normal mode if there is stroke color. - b, Large area of black background: C0 M0 Y0 K100, if you want it darker, it is recommended to use the color value C30 M0 Y0 K100;
- c, Gray text and gray background design single-color gray, C0 M0 Y0 K (8-90).
- a, Black text:
- QR Code
The QR code is printed directly according to your designed file without post-processing. The QR code is recommended to be designed in single black and the size should be ≥14mm. If your QR code is too small or in four colors, it may not be scanned.
The steps to change the QR code from four colors to single black in PSD software are as follows:
Open the QR code with PSD → Edit → Convert to Profile → Destination Space, select "Custom CMYK" for the profile, do not change other settings and click OK, click OK in the popped-up window → Custom CMYK, select "Maximum" for Black Plate Generation, enter "400" for Ink Limit, click OK → Check in the Information panel whether the QR code is single black. (The following is the specific setting, for reference, you can set it as an action for easy operation next time)
03、Dangerous Colors and Design Color Notes
Containing C color
High C color value
Four-color Black
- The above figure lists some dangerous colors. Such colors will cause ink streaks during printing, and the color difference is obvious. These problems are phenomena that are difficult to avoid in printing. In order to ensure that you can deliver normally, please inform the customer in advance. It is recommended that the sum of CMYK four colors ≤ 250.
- If the single color value of the four colors CMK on PVC is more than 8, if the color is too light, it will cause the color to be too light and not printed out.
- Please design CMYK four colors for the color, do not design spot colors and RGB colors. If the color of your file is not CMYK color, there will be changes if we directly change the color.
- Some common color recommended values:
- Yellow series: C=0. If you want the color to be dark, you can add K to darken the color. If the yellow series in your file contains C cyan, the color will be greenish and dark. For example: C0 M30 Y90 K10
- Blue: It is recommended that the M color value <80. For example: C100 M70 Y0 K0
- Purple: It is recommended that the C color value <75. For example: C70 M100 Y0 K0
- Dark red: C=0, K≤60. For example: C0 M100 Y100 K30
- Dark green: M=0, K≤60. For example: C100 M0 Y100 K40
- Dark blue: Y=0, K≤50. For example: C100 M75 Y0 K40
- Dark purple: Y=0, K≤50. For example: C60 M100 Y0 K40
- Coffee color: Do not have all four CMYK colors. For example: C0 M80 Y100 K60
04. To ensure the printing effect, it is recommended to send vector files (CDR/AI) and JPG (JPG images with a resolution of more than 500) for the file.
