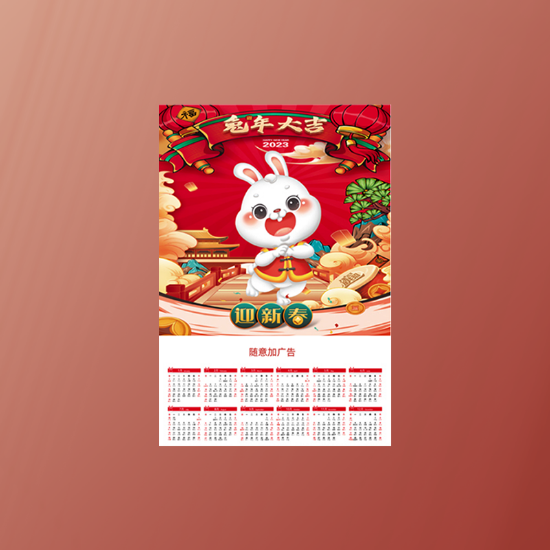

PVC Special Price Poster

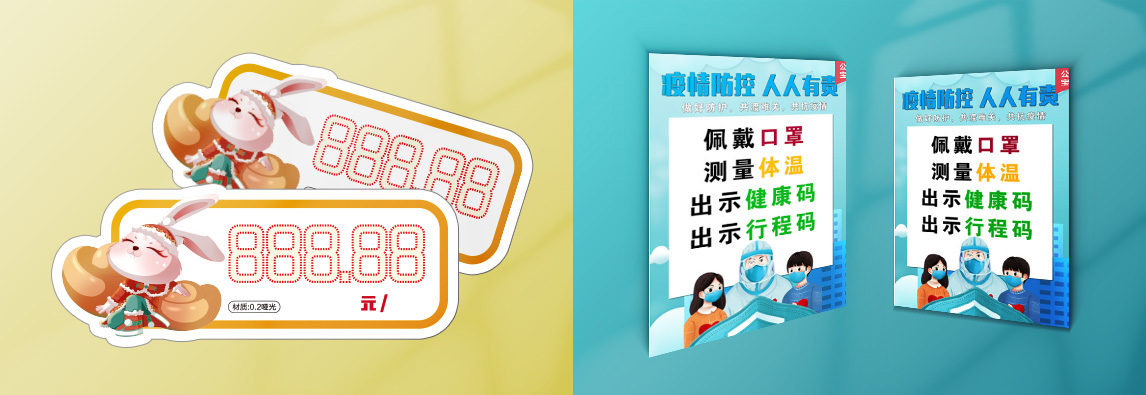

Product Effect
PRODUCT
Product Specifications
PRODUCT SPECIFICATIONS
[It is recommended to make the quantity in multiples of 500 or 1000]
210×285 (unit: MM)
420×285 (unit: MM)
430×580 (unit: MM)
900×700 (unit: MM)
Product Material
PRODUCT MATERIAL
Matte New Material
(The actual thickness is about 16 silk)
Waterproof and tear-resistant, smooth and delicate, suitable for single-sided printing. It is recommended to use sunscreen ink when used outdoors.
Product Process
PRODUCT PROCESS
Adhesive Backing:
Adhesive is pasted on the blank side of single-sided printing. The adhesive is strong, waterproof and oil-resistant. It is often used for indoor and outdoor advertising posters, instruction stickers and other places with relatively flat pasting surfaces, with high cost-effectiveness.
Punching:
Commonly made into round holes of 3mm, 4mm, 5mm. If other sizes of holes are needed, the hole size can be entered in the order process or the die line can be made in the file. We will die-cut the finished product according to the die line, and no additional cost will be charged for punching.
Sunscreen Ink:
If the card is used outdoors, it is recommended that customers choose sunscreen ink, among which blue and black colors have higher sunscreen index.
Precautions
PRECAUTIONS
- 1. Size Design:
If the product is non-rectangular, a die line needs to be designed, and 3mm bleed needs to be added to each side. After bleeding, the content needs to be at least 6mm away from the edge. If punching is done, the hole position also needs to be at least 6mm away from the edge and at least 3mm away from the surrounding text. - 2. Color Grasp:
The production file needs to be in CMYK color mode, and spot color printing is not supported. Color adjustment design can be referred to the color spectrum. Default combined printing will have a color difference of about 10%-15%. For black background, it is recommended to design as C30 M0 Y0 K100 or single black, and for gray background, design single gray. It is not recommended to design large-area over-dark colors. The sum of CMYK needs to be less than 260 to avoid multi-color or color deviation on one card. - 3. Common File Problems:
Vector tracing (CDR/AI), PS, JPG (resolution greater than 500) files. Vector text is recommended to be above 5 points, and JPG format is recommended to be above 6 points. Black text must be designed as single black, and the QR code must be designed to be above 2CM and single black. When the single side size is less than 80mm, the finished product is prone to interface or die-cutting errors. Please inform the customer in advance according to the customer's situation! - 4. Self-service Ordering:
Please be sure to determine the quantity, material, and post-processing requirements before uploading. If the files on both sides are the same, please submit the back file together. If there are multiple models with the same back file, only one back file needs to be placed, and the back file is named as "same back". Place the front and back files left and right. If double-sided printing and single-sided adhesive backing are needed, please select the side that needs adhesive backing and mark it clearly in the file.
Product Quality Guarantee and Disclaimer
Since its establishment, our company has maintained a rigorous and responsible attitude in providing each client with comprehensive services from consultation to after-sales support. To facilitate your understanding of our company and uphold our commitment to product quality responsibility, we hereby publish the printed product quality guarantee and disclaimer as follows:
After-Sales Service Timeliness
Please inspect the goods promptly upon receipt for any quality issues and submit an after-sales request within one month. After-sales requests submitted beyond one month will not be processed. Thank you for your understanding!
Color Deviation Issues
- Printing uses CMYK four-color offset printing. Please do not use RGB mode or spot colors when filling colors. Do not require printing colors based on screen or printed proof colors. When designing, please refer to color chart values for color fills. Otherwise, after-sales service will not be provided for resulting color deviations.
- We strictly adhere to the CMYK color values in the file for printing. However, for the same printed product with different order numbers or produced in different batches, a color deviation of around 10% is normal due to variations in temperature, humidity, and manual operations. Particularly for dark blue, dark green, dark purple, maroon, brown, coffee, and gray — these are considered risky colors. A color deviation of around 5% can be visually noticeable, especially for large solid areas and flat tints. During printing, issues like ink streaks, uneven printing, or color variations within a batch may occur and are unavoidable. After-sales service will not be provided for issues within this range.
Cutting Issues
There is a cutting tolerance of 2 millimeters. Design essential content at least 3 millimeters away from the finished edge (excluding bleed). Especially for designs with colored borders on all sides, uneven cutting may occur and be visually noticeable. Please inform the client in advance. After-sales service will not be provided for issues within this range.
Four-Color Black Text and QR Code Issues
Please design black text and QR codes as solid black (K100, CMY 0). For large-area black, use the color value (K100, C30, M0, Y0). Do not design with four-color black, as it may cause ink smearing and misregistration issues. After-sales service will not be provided if these instructions are not followed.
Filename and Remarks Issues
Order production is based on the selected printing specifications. Filenames and remark information are not used as references for production. Please ensure the correct paper and processes are selected when placing the order. Otherwise, after-sales service will not be provided for resulting losses.
Minor Scratch Issues

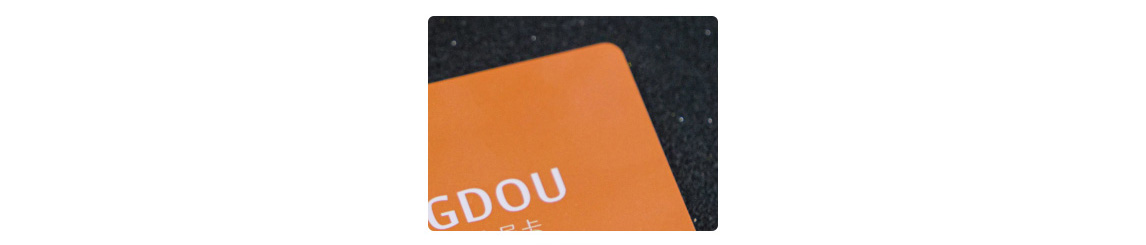

PVC cards require a lamination process to achieve glossy, matte, or satin finishes. The post-production involves multiple steps, and friction during transportation can cause minor scratches. Glossy materials do not conceal imperfections; minor scratches on glossy cards are unavoidable, and after-sales service will not be provided. If the client has high requirements, we recommend using matte or satin materials.
Missing Codes and Number Gaps
PVC card production involves many processes. Numbering has a 0.5% wastage rate, and machine numbering may occasionally skip numbers. Therefore, we cannot guarantee that numbers will be completely sequential and continuous. For missing codes, after-sales service will not be provided.
Material Variation Issues
PVC is a plastic product. Material thickness may vary by about 0.02mm between different batches, and color may slightly differ. These are normal phenomena; please inform the client in advance. When thickness exceeds 0.5mm, cards require lamination to be finished. Influenced by factors such as temperature, humidity, surface material, and core material thickness tolerance, cards may have slight unevenness. This is unavoidable, and after-sales service will not be provided. Due to the special properties of the material, the finished product is not guaranteed to be suitable for secondary overprinting. After-sales service will not be provided for such issues.
Regarding Sunlight Resistance
PVC specialty cards are printed using CMYK four-color offset printing, resulting in a relatively thin ink layer. Ultraviolet (UV) rays or rainwater can damage ink stability. Fading will occur faster under strong UV light or frequent rain. If the client requires color sunfastness, we recommend selecting sunlight-resistant ink when placing the order. The sunlight-resistant ink we use has a grade 6 sunfastness rating, and its effectiveness generally lasts 1-3 months.
Regarding Environmental Testing
The following materials require core material lamination and currently do not support environmental testing: 0.32mm matte standard material, 0.76mm glossy new material, 0.76mm matte new material, 0.76mm satin new material, 1mm glossy new material, 1mm matte new material, 1mm satin new material. If the client has high requirements and needs to meet environmental testing standards, please consult our staff separately for calculation and arrangement.
Regarding Ink Smearing Issues
PVC production involves many processes, and there is a certain probability of slight surface dust or ink smearing, especially with glossy materials. For high-demand dark or solid-color cards, achieving zero defects is currently not possible. We recommend informing your client of this situation in advance and合理安排 material and order planning accordingly.
PVC Category - PVC Special Price Poster Product Ordering Instructions
Dear Customer:
PVC special price posters are processed automatically. To improve efficiency for both of us, please abide by the following rules!

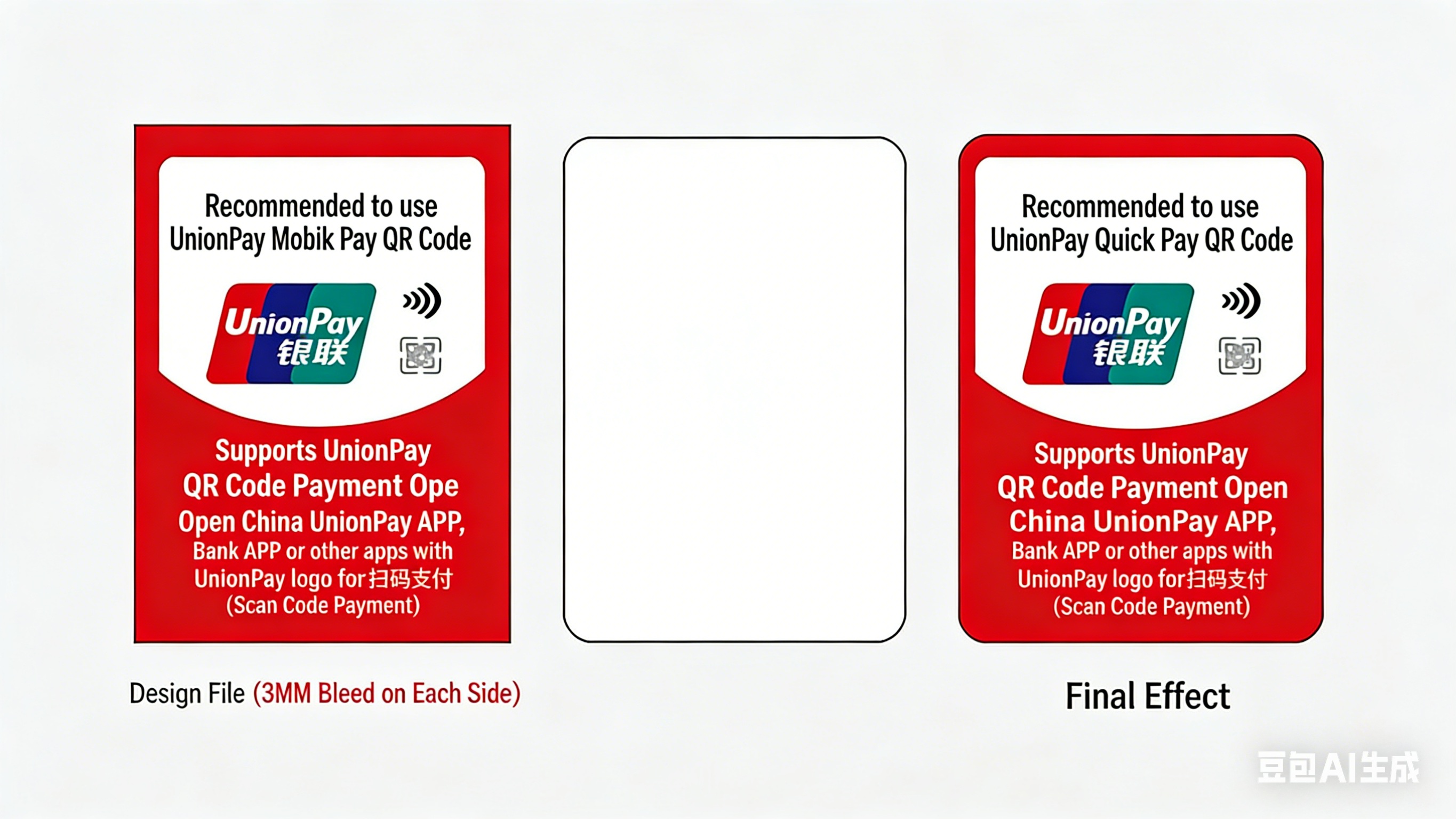

1. Bleed
Bleed is 3MM on each side, and the effective content after bleed is at least 6MM away from the edge. If die-cutting shapes or holes are needed, please be sure to make the die line (that is, the finished product line) in the design file.
2. Matte Material Single-sided Printing
Matte material is only suitable for single-sided printing. Please pay attention when communicating with customers for ordering.
3. Black and Gray
- Black text:
AI/PDF/CDR file: Black text color value C0 M0 Y0 K100;
JPG file: Black text color value C0 M0 Y0 K100, no stroke color mode multiply, if there is a stroke color mode, it is normal. - Large-area black background: C0 M0 Y0 K100, if you want it to be blacker, the recommended color value is C30 M0 Y0 K100;
- Gray text and gray background are designed as single gray, C0 M0 Y0 K (8-90).
4. QR Code
The QR code is printed directly according to your design file without post-processing. The QR code is recommended to be designed as single black and the size needs to be ≥14mm. If your QR code is too small or in four colors, it may not be scanned.
The following steps can be operated in PSD software to change the four-color black of the QR code to single black:
Open the QR code with PSD→Edit→Convert to Profile→Target Space, select "Custom CMYK" for the profile, do not change other settings and click OK, click OK on the pop-up window→Custom CMYK,
Select "Maximum" for Black Plate Generation, enter "400" for Ink Limit, click OK→Check if the QR code is single black in the Information panel. (The following is the specific setting, for reference, it can be set as an action for easy next operation)
- Black and Gray
- a, Black text:
For AI/PDF/CDR files: The color value of black text is C0 M0 Y0 K100,
For JPG files: The color value of black text is C0 M0 Y0 K100, the overlay mode without stroke color, and the normal mode if there is stroke color. - b, Large area of black background: C0 M0 Y0 K100, if you want it darker, it is recommended to use the color value C30 M0 Y0 K100;
- c, Gray text and gray background design single-color gray, C0 M0 Y0 K (8-90).
- a, Black text:
- QR Code
The QR code is printed directly according to your designed file without post-processing. The QR code is recommended to be designed in single black and the size should be ≥14mm. If your QR code is too small or in four colors, it may not be scanned.
The steps to change the QR code from four colors to single black in PSD software are as follows:
Open the QR code with PSD → Edit → Convert to Profile → Destination Space, select "Custom CMYK" for the profile, do not change other settings and click OK, click OK in the popped-up window → Custom CMYK, select "Maximum" for Black Plate Generation, enter "400" for Ink Limit, click OK → Check in the Information panel whether the QR code is single black. (The following is the specific setting, for reference, you can set it as an action for easy operation next time)
03、Dangerous Colors and Design Color Notes
Containing C color
High C color value
Four-color Black
- The above figure lists some dangerous colors. Such colors will cause ink streaks during printing, and the color difference is obvious. These problems are phenomena that are difficult to avoid in printing. In order to ensure that you can deliver normally, please inform the customer in advance. It is recommended that the sum of CMYK four colors ≤ 250.
- If the single color value of the four colors CMK on PVC is more than 8, if the color is too light, it will cause the color to be too light and not printed out.
- Please design CMYK four colors for the color, do not design spot colors and RGB colors. If the color of your file is not CMYK color, there will be changes if we directly change the color.
- Some common color recommended values:
- Yellow series: C=0. If you want the color to be dark, you can add K to darken the color. If the yellow series in your file contains C cyan, the color will be greenish and dark. For example: C0 M30 Y90 K10
- Blue: It is recommended that the M color value <80. For example: C100 M70 Y0 K0
- Purple: It is recommended that the C color value <75. For example: C70 M100 Y0 K0
- Dark red: C=0, K≤60. For example: C0 M100 Y100 K30
- Dark green: M=0, K≤60. For example: C100 M0 Y100 K40
- Dark blue: Y=0, K≤50. For example: C100 M75 Y0 K40
- Dark purple: Y=0, K≤50. For example: C60 M100 Y0 K40
- Coffee color: Do not have all four CMYK colors. For example: C0 M80 Y100 K60
04. To ensure the printing effect, it is recommended to send vector files (CDR/AI) and JPG (JPG images with a resolution of more than 500) for the file.
